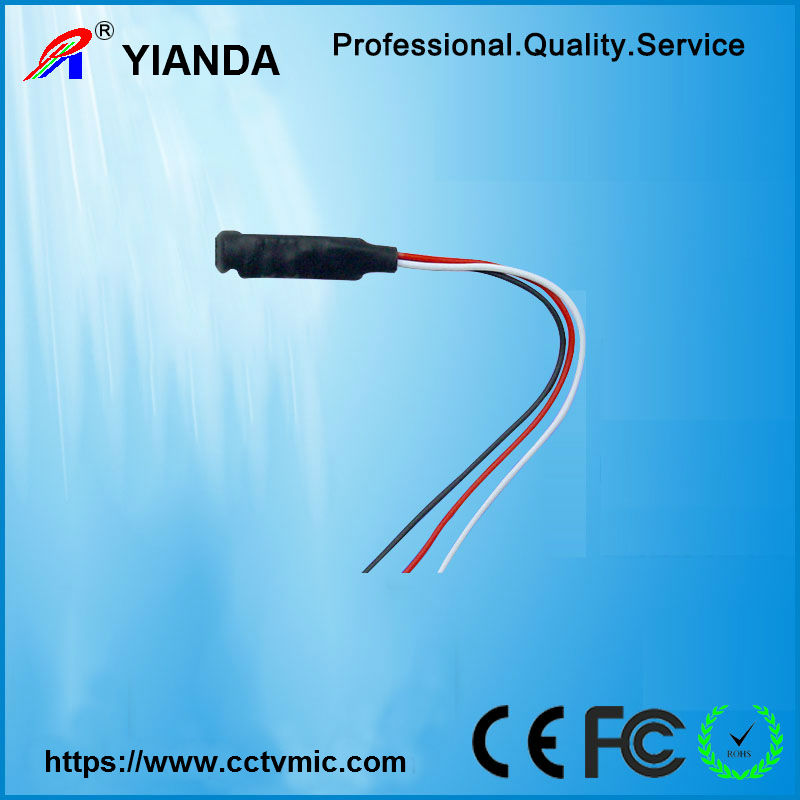

Mini high-fidelity Audio Pickup Security Listening for CCTV Camera Audio Camera Microphone
GO Back- SKU: CS-05A
- Brand: OEM
- Color: black
- Weight: 2g
- Size: 25mm*7mm*7mm
- Material: plastic
- MOQ: >10
- Lead time: 7-15 days
- Description
- Parameter
Taiwan design,Micro-chip design, High-fidelity,Adjustable sensitivity, Voltage :6-12VDC;
Frequency response :100-5500Hz,
Output signal amplitude: 2.5Vpp/-25db;
Output impedance: 600 ohms unbalanced;
Transmission distance: 1000m above;
range:50 square m
Apply to video recorders such as sea kang, dahua, hanbang.
Voltage
linear power supply (transformer) dc 9-12 v
Electric current
15 ma
Output impedance
600 ohm non equilibrium
Connecting mode
red (power is) black (public) white (audio is)
